Magnets are customized because of the different needs of different customers.Customizable NdFeB magnet Specifications are as follows:
1, Grade: N30, N33, N35, N38, N40, N42, N45, N48, N50, N52
Note: the higher the grade, the more expensive the price, the more crisp the material.
2, Temperature: grade without letters for conventional temperature 80 degrees, adding M is 100 degrees, H is 120 degrees, SH is 150 degrees, UH is 180 degrees, EH is 200 degrees.
Note: the higher the temperature resistance, the more expensive the price, the magnetic force is slightly weaker than the conventional temperature resistance magnet.
3, Coating: galvanized (Zinc- black, silver), nickel plating (NiCuNi- bright silver, black), epoxy resin(EPOXY-Black) and so on.
Note: The conventional electroplating is zinc silver, nickel bright silver, epoxy black.Need other coating such as chrome, gold..., the price is a little higher.

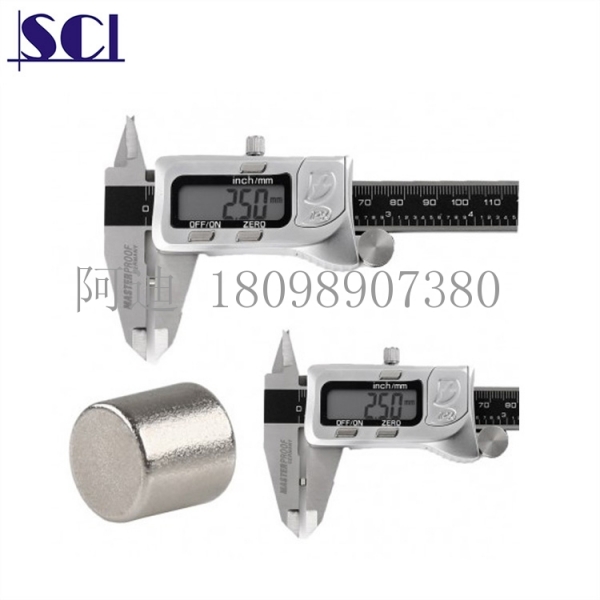

4. Size: the size of the block raw material is 64x54x36mm, and the actual size after cutting is about 62x52x34mm.The maximum size of the cylinder is 50mm.
Note: The maximum size of the square magnet is about 62x52x34mm.Cylindrical magnets of unusual size are cut and polished into cylinders with block magnets.
5, magnetizing direction: magnetizing direction of the magnet raw material is 36mm thickness direction.round&nb
