Feartures:
1 With magnetic shielding technology, the magnetic circuit of components is closed, and no interference can be achieved before components are assembled, so that high density installation can be realized.
2 Multi-layer structure, high reliability;
3 No lead end, small parasitic capacitance
Applications:
Radio frequency (RF) and wireless communication, information technology equipment, radar geophone, automotive electronics, audio and video equipment, wireless remote control system, etc.

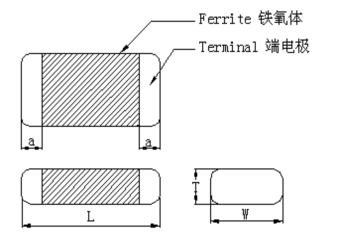

SHAPE AND DIMENSIONS
PART NUMBERING：
CMI 1005 C 5R6 K T (f)
① ② ③ ④ ⑤ ⑥ ⑦
（1）Product symbol：
（2）Dimensions ： Length（L）×Width（W）×Thickness（T）
（3）Material code ：
（4）Inductance：R47-0.47uH, 4R7-4.7uH, 150-15UH, 151-150UH;
（5）Tolerance ： J－±5% K－±10% M－±20%
（6）Packing style ： B：bulk； T：Tape and reel
（7）Leadfree productors ：according to customer‘s demond
